Spreading Resistance of Circular Sources on Compound and Isotropic Disks


This application calculates thermal spreading resistance for a circular source on a circular disk, semi-infinite circular cylinder, or half-space. Solutions are available for a compound medium with two layers having different thicknesses and thermal conductivities, and an isotropic medium with constant properties throughout. For the finite disk cases, two boundary conditions for the lower surface are considered: a uniform film coefficient, corresponding to convective or contact cooling, and a uniform temperature boundary condition. The heat flux over the circular source is either uniform, parabolic, or distributed such that the resulting source is equivalent to an isothermal boundary condition.


Thermal spreading resistance occurs whenever heat leaves a source of finite dimensions and enters a larger region. The particular case modeled by this calculator involves a planar circular heat source of radius a in perfect contact with the top surface of a circular disk or semi-infinite circular cylinder of radius b. For the finite disk, the overall thickness of the disk is t, and the disk is cooled over its entire bottom surface either with a uniform convective or contact conductance h, or an isothermal boundary. The lateral and non-source top surface boundaries of the disk or cylinder are adiabatic.

The total system thermal resistance Rtotal is defined by:

Rtotal = ( Tsource - Tsink ) / Q

where: Tsource = area-mean source temperature ( oC)
Tsink = mean heat sink temperature ( oC)
Q = heat flow rate through the heat flux channel (W)

Rtotal = Rs + R1D

where Rs is the thermal spreading resistance of the system and R1D is the one-dimesional thermal resistance, defined as:

R1D = ( t1 / k1 + t2 / k2 + 1 / h ) / b2

For the general case of a rectangular source area on a finite, two-layer rectangular heat flux channel, the spreading resistance will depend on several geometric and the heat flux distribution:

Rs = f ( a, b, t1, t2, k1, k2, h )

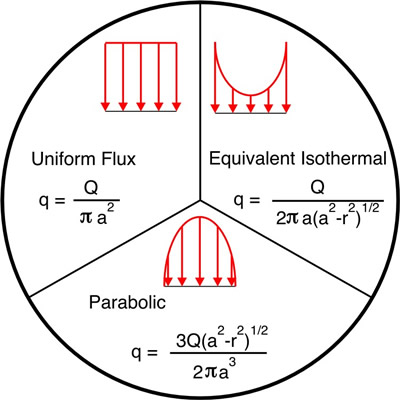

Three flux distributions are included in this applications:

The results for total, one-dimensional, and spreading resistance are presented in both dimensional and dimensionless forms, where the resistance is non-dimensionalized by:

R* = 4 k1 a R

All calculations are based on methods described in M.M. Yovanovich, J.R. Culham and P. Teertstra, "Modeling Thermal Resistance of Diamond Spreader on Copper Heat Sink Systems," presented at the IEPS Electronics Packaging Conference, Sept. 29 - Oct. 1, Austin, TX, 1996, and M.M. Yovanovich, C.H. Tien and G.E. Schneider, "General Solution of Constriction Resistance Within a Compound Disk," Heat Transfer, Thermal Control and Heat Pipes, AIAA Progress in Astronautics and Aeronautics, Vol. 70, 1980

  1. Click on the image below that best describes your problem
  2. When the required tables are loaded, enter all input values in the table on the left
  3. Browser will calculate when the Calculate button is clicked
  4. Depending on the speed of your machine and the number of terms, the solution may take a while to compute

Compound Disk with
Convective Cooling

Isotropic Disk with
Convective Cooling

Compound Disk with Uniform
Temperature Boundary Condition

Isotropic Disk with Uniform
Temperature Boundary Condition

Compound Flux Tube

Isotropic Flux Tube

Circular Source on Compound Half-Space

Circular Source on Isotropic Half-Space
